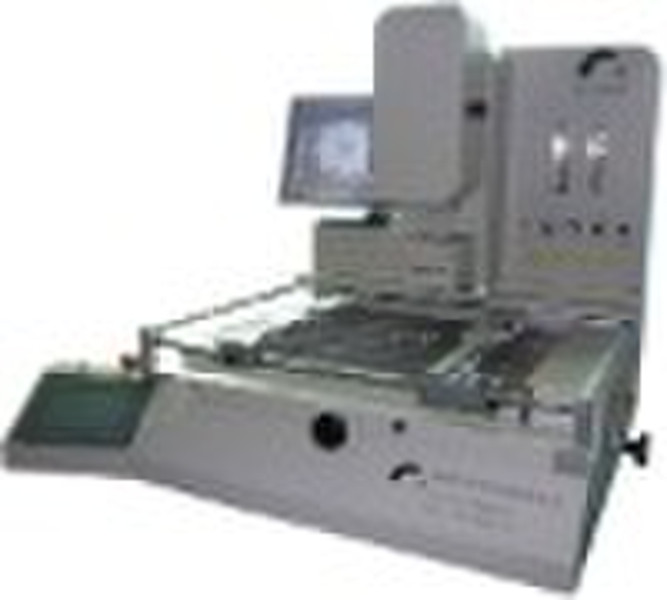

Semi-auto ZX-PD320 bga rework station,bga rework m

ZX-PD320 bga rework machine/bga rework station Features: 1.Embedded Windows system, PLC user interface control, optical alignment system, display 8 temperature profile at the same time; 2.Can save and print temperature profile, contrast and analysis temperature; 3.HD color optical alignment system, optical zoom up to 22 times; 4.Auto alignment, mounting, welding and removal; 5.Upper heater with hot air, bottom with hot air and IR to preheat; 6.Optical alignment system can move right and left, front and back, enlarge observation range; 7.Three independent heater with 9 segment temperature up(down)+9 segment constant control, can store N groups temperature profile; 8.Bottom heater with supporter to prevent welding zone part deformation;9.Reserved Nitrogen interface, rework process in the protection of Nitrogen; 10.After removal and welding, with cooling fan to cool PCB board, ensure welding effect; 11.Equipped with various size of hot air nozzle, heater can 360 degree rotation, easy to replace; 12.Build-in vacuum pump, no need gas source. Specifications PCB Size≤L500×W450mmPCBThickness0.1 5mmFine-tuning accuracy0.01mmAnglefinetuning90°Temperature ControlKthermocouple PID Closed loopPCB Positioning modeOuterBottom preheatInfrared 3000WMain (upper+bottom) heaterHot air 800W+800WPower supplySingle phase220V,50/60Hz,4.6KVADimensionL700×W800×H720mmWeightApprox. 130kgs
