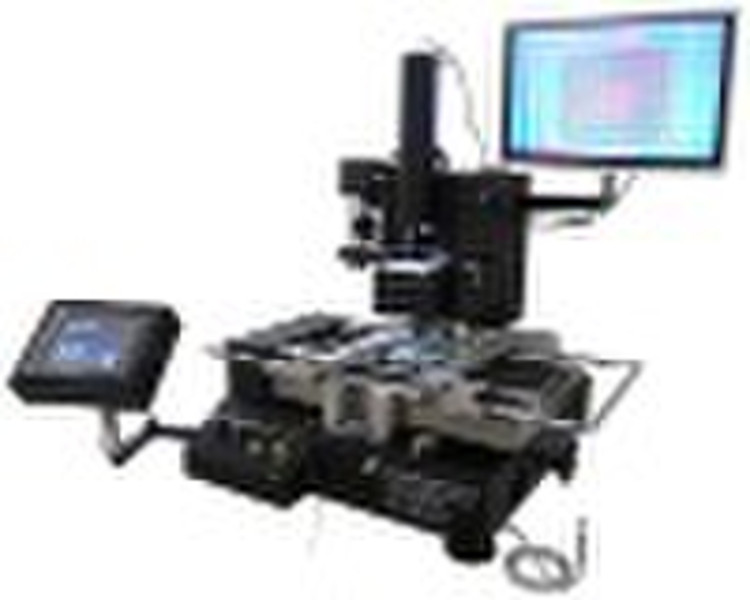

Optical alignment ZX-EP280 BGA rework station

ZX-EP280 BGA rework station Features: 1.HD optical alignment system design,optical zoom up to 22 times;2.Alignment fine-tuning accuracy can be 0.01mm;3.PLC user interface control, display 4 temperature profile at the same time; 4.Upper heater with hot air to heat, bottom with hot air and IR to preheat;5.Three independent heater with 9 segment temperature up(down)+9 segment constant control, can store 40 groups temperature profile; 6.Three heating zone with independent PID to control heating process, more stable and accurate;7.After removal and welding, with cooling fan to cool PCB board, ensure welding effect; 8.Bottom heater and IR preheating zone with supporter to prevent welding zone part deformation;9.Equipped with various size of hot air nozzle; 10.Upper and bottom heater can 360 degree rotation, easy to replace; 11.Build-in vacuum pump, no need gas source. Specifications PCBsize≤L500×W400mmPCB Thickness0.1 5mmFine-tuning accuracy0.01mmAngle fine-tuning360°Temperature ControlK thermocouple PID Closed-loop controlPCB Positioning modeOuterBottom preheatInfrared 3000WMain (upper+bottom) heaterHot air 800W+800WPower supplySingle phase220V,50/60Hz,4.6KVADimensionL500×W480×H500mmWeightApprox. 95kgs
