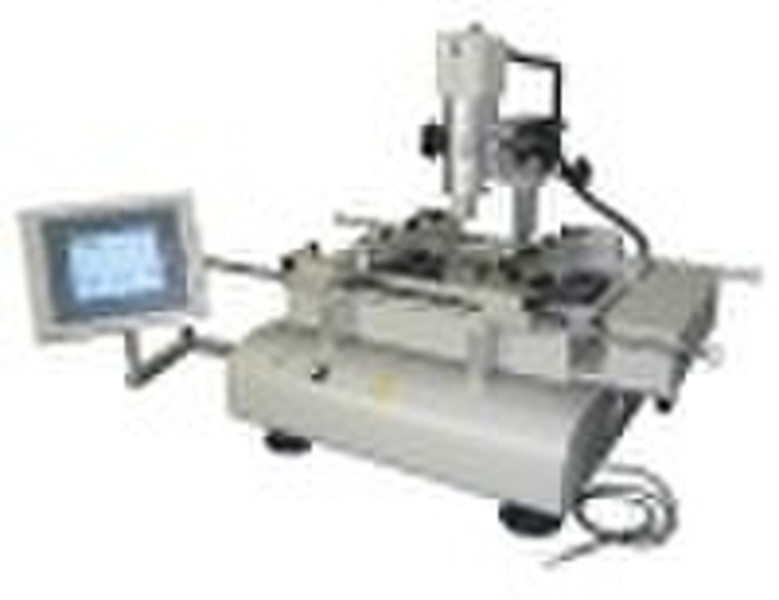

Cost-effective ZX-CP200 BGA repair station

BGA repair station/BGA rework station Features:1.With PLC user interface control, display actual temperature of three zone and a test temperature curve;2.With three independent temperature zone control, upper and bottom main heater with hot air to heat, third zone with infrared to preheat;3.Three heater with 9 segment temperature up (down)+9 segment constant temperature control, can store40 groups temperature curve;4.Three heating zone with independent PID to control heating process, more stable and accurate;5.Bottom heater and IR preheating zone with supporter to prevent welding zone part deformation;6.After removal and welding with cooling fan to cool PCB board, ensure welding effect;7.Temperature profile parameter with password protection;8.Equipped with a variety size of hot-air nozzle, or made according to special requirements;9.Build-in vacuum pump, no need gas source.SpecificationsPCB Size≤L540×W450mmPCBthickness0.1 5mmTemperature ControlKthermocouplePID Closed loopPCB Positioning modeOuterBottom preheatInfrared 2400WMain (Top+bottom) heaterHot air 800W+800WPower supplySingle phase 220V,50/60Hz,4.0KVADimensionL700×W490×H600mmWeightApprox. 38kgs
